We are in the process of creating a website page of plant cranes (Account 315) including; Shops, Offices, Maintenance facilities, Warehouses, Shipway Offices, etc.
Our First 'iPost' (initial posting) are drawings of both the Central and North Yard showing facilities with identification numbers that are reflected in the following list. Please be patient with updated postings as there is a lot of research and documentation involved. Dave Kavanagh
SSHS hopes that you will find this 'Plant Cranes' page both easy to navigate and informative. As with all other areas of the website;
1) If you can contribute new subjects or additional information on existing panels, please let us know by contacting SSHS from the email address on the home page.
2)We have done our best to insure the accuracy of the information presented on the site. However, this information is from multiple and varied sources including past employees memories of events during the Sun Ship era. The accuracy of this information cannot be guranteed.
Maint. Cat. No.
Description
315-30 Boiler Shop Bridge Cranes Mfg
Note 1: Access to this specific grouping is gained by clicking on the 'Sun Icon' located to the left of the catalog number that is in bold, blue and underlined

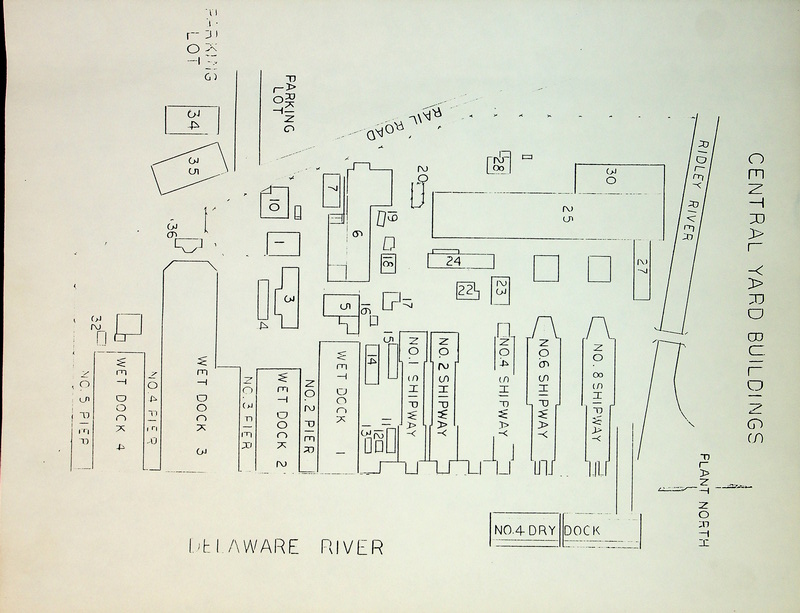

CENTRAL YARD Map Layout
Description
Note 2: The 8-digit Yard account numbers for items listed under '315' account number is as follows:
ie; #315-30-001: 315-Crane account, 30-department, XXX- Specific Crane.
Designation: HB, LB and LLB signify; Building's 'High Bay', 'Low Bay' and 'Low-Low Bay'
315-30-011 Boiler Shop, HB #1 35T-10T P&H
315-30-012 Boiler Shop, HB #2 35T-10T P&H
315-30-013 Boiler Shop, HB #3 50T-50T P&H
315-30-014 Boiler Shop, LB #1 10T P&H
315-30-015 Boiler Shop, LB #2 15T P&H
315-30-016 Boiler Shop, Annex 25T-5T Niles
315-30-017 Boiler Shop, Lean-to 10T-10T Niles
315-47Fabrication Shop Bridge Cranes Mfg.
315-47-020 Fab Shop, HB #1 20T-5T Shaw/P&H
315-47-021 Fab Shop, HB #2 30T-5T P&H
315-47-082 Fab Shop, HB #3A 75T-5T-5T Shep/Niles
315-47-022 Fab Shop, HB #5 30T-10T P&H
315-47-080 Fab Shop, HB #4 75T-5T Shep/Niles
315-47-021 Fab Shop, LB #1 20T-5T P&H
315-47-024 Fab Shop, LB #2 10T-5T P&H
315-47-026 Fab Shop, LB #3 15T P&H
315-47-027 Fab Shop, LB #4 10T-5T P&H
315-47-028 Fab Shop, LLB #4 15T P&H
315-47-028 Blacksmith Shop 10T P&H
315-8080S Storeroom Bridge Crane Mfg.
315-34Pipe Shop Bridge Cranes Mfg.
315-34-061 Pipe Shop, #1 15T P&H
315-47-083 N/C Burning Shop 20T-Mag Reading
315_08 Giddings & Lewis (#3 Storeroom) Mfg.
315-08-494 G&L Shop LLB #2 10T P&H
315-80-060 80S Storeroom 10T P&H
315-75Plate Yard Cranes Mfg.
315-75-089 Plate Yard 10T Heede
315-75-090 Plate Yard 20T Heede
315-75-049 Plate Yard 10T P&H
Mfg.
Mfg.
Maint. Cat. No.
315-76-062 2 Pier Fwd 21T-3T Amer. Revolver
315-76Pier Gantry Cranes Mfg
315-76-063 3-1/2 Pier Aft 21T-3T Amer. Revolver
315-76-064 3 Pier Fwd 21T-3T Amer. Revolver
315-76-065 3 Pier Aft 21T-3T Amer. Revolver
315-76-066 4 Pier Mid 21T-3T Amer. Revolver
315-76-067 4 Pier Aft 21T-3T Amer. Revolver
315-76-068 5 Pier 21T-3T Amer. Revolver
315-76-069 6 Way Fwd 50T-15T Amer. Revolver
315-76 C.Y. Shipway Gantry Cranes Mfg.
315-76-070 6 Way Aft 50T-15T Amer. Revolver
315-76-071 92' Fwd 50T-15T Amer. Revolver
315-76-072 92' Aft 50T-15T Amer. Revolver
315-76-073 8 Way Fwd 50T-15T Amer. Revolver
315-76-074 8 Way Aft 50T-15T Amer. Revolver
315-76-084 #1 250T-xxT Washington Iron Works
315-76-085 #2 250T-xxT Washington Iron Works
315-76-086 #3 75T-xxT Washington Iron Works
315-76-087 #4 75T-xxT Washington IronWorks
315-76-088 #5 75T-xxT Washington Iron Works
315-76North Yard WIW Gantry Cranes
304-75#4DD Gantry Cranes Mfg.
304-22-326 'B'-Offshore Gantry 23.5T/5T Clyde
304_22_227 'A'-Offshore Gantry 23.5T/5T Clyde
304-22-326 'B'-Inshore Gantry 10T Clyde
304_22_178 'A'-Inshore Gantry 10T Clyde
315-79Rocket Shop Bridge Cranes Mfg.
315_79_045 Rocket Shop LB 10T P&H
315_79_057 Rocket Shop HB 30T/5T P&H
315-08Wetherill PLant Bridge Cranes Mfg.
315-08-### WIP ##T ???
315-79-079 14 Way-NY 21T-3T Amer. Revolver
NORTH YARD Map Layout
Note 3: The maps below will only show the buildings by their 'account' number. To related a 2-digit building number to the account number listed below, visit the 'Plant Building' page.
